Yuav ua li cas Pneumatic Conveying System txiav plua plav, poob sijhawm, thiab cov khoom poob?

Abstract

Tsiv hmoov, pellets, thiab granules suab yooj yim kom txog rau thaum koj tab tom cuam tshuam nrog cov huab cua plua plav, txhaws chutes, kev sib cais, cov khoom tawg, thiab cov neeg ua haujlwm hloov chaw zov menyuam txhua hnub. Ib tug zoo tsimPneumatic conveying systemtxav cov khoom siv ntau dhau los ntawm cov kav dej uas siv los tswj cov huab cua, pab cov nroj tsuag kom huv si, nyab xeeb dua, thiab zoo ib yam thaum txo kev tuav tuav.

Cov lus qhia no rhuav tshem cov kev txiav txim siab uas tseem ceeb rau kev ua haujlwm thiab kev ua haujlwm ntawm tus nqi, los ntawm lub tshuab nqus tsev vs siab mus rau dilute vs ntom theem, pom, xaiv airlock, thiab cov kav xa dej. Nws kuj suav nrog cov ntawv txheeb xyuas qhov ua tau zoo, lub rooj sib piv, thiab FAQ yog li koj tuaj yeem txav los ntawm "peb xav tau qee yam uas ua haujlwm" mus rau qhov tseeb, tsis tshua muaj kev pheej hmoo. Piv txwv thiab cov lus pom zoo qhia txog cov xwm txheej hauv kev lag luam thiab kev siv engineering siv los ntawmShandong Yinchi Environmental Protection Equipment Co., Ltd.

Cov Lus Qhia

• Cov ntsiab lus
• Cov teeb meem dab tsi Pneumatic Conveying daws
• Yuav ua li cas Pneumatic Conveying System ua haujlwm
• Vacuum Conveying vs Pressure Conveying
• Dilute Phase vs Dense Phase
• Cov ntsiab lus tseem ceeb uas txiav txim siab kev ntseeg siab
• Tsim daim ntawv txheeb xyuas ua ntej koj yuav
• Lub zog thiab cov nqi khiav lag luam
• Dust Control thiab kev saib xyuas kev nyab xeeb
• Txoj Haujlwm Pabcuam thiab Kev Pabcuam
• Cov Kev Siv Ntiaj Teb tiag
• FAQ
• Kev xaus thiab cov kauj ruam tom ntej

Cov ntsiab lus

• Txheeb xyuas koj cov ntsiab lus mob loj tshaj plaws thiab qhov "kev vam meej" zoo li hauv pem teb
• Nkag siab txog airflow-thiab-khoom hauv paus yog li cov lus pom zoo sib piv
• Xaiv txoj cai conveying hom rau kev ncua deb, layout, thiab khaws cov ntsiab lus
• Xaiv dilute los yog ntom theem raws li cov khoom fragility thiab muaj peev xwm
• Xauv hauv cov khoom siv txhim khu kev qha uas phim koj cov khoom siv
• Siv daim ntawv txheeb xyuas kom txo tau qhov kev pheej hmoo ua ntej tsim thiab teeb tsa
• Npaj rau kev tswj plua plav, kev ua haujlwm nyab xeeb, thiab kev tswj xyuas txij hnub ib

Cov teeb meem dab tsi Pneumatic Conveying daws

Yog tias koj tab tom xav txog aPneumatic conveying system, tej zaum koj yuav tsis ua rau kev lom zem. Koj tab tom ua nws vim tias koj txoj kev hloov pauv tam sim no raug nqi koj lub sijhawm, khoom muag, thiab kev ua siab ntev.

• Plua plav ntawm cov ntsiab lus hloov chawuas lub tsho tiv no cov khoom siv, ua rau lub tswb nrov hauv tsev, thiab tsim kom muaj kev ua haujlwm tsis zoo
• Cov khoom poob thiab kev sib kislos ntawm qhib conveyors, xau, los yog nquag ntxuav
• Kev sib txuas thiab cloggingnyob rau hauv chutes, hoppers, thiab ntsia hlau feeders vim tsis sib haum
• Kev tsis sib haum xeebtshwm sim los ntawm kev sib cais, spillage, los yog tsis ruaj khov tus nqi pub
• Ua haujlwm siab dependenceqhov twg cov neeg ua haujlwm yuav tsum cuam tshuam kom cov khoom txav mus los
• Cov khoom puasxws li pellet breakage, hmoov attrition, los yog ntau tshaj nplua nuj tiam
• layout txwvThaum koj yuav tsum tau taug kev ncig cov qauv, hla cov plag tsev, lossis mus txog silos

Cov raj xa dej xa mus pab tau vim tias nws txo qis cov ntsiab lus hloov pauv thiab txav cov khoom siv nrog cua tswj thiab siab. Qhov ntawd txhais tau hais tias tsawg dua qhov chaw rau plua plav kom dim, tsawg qhov chaw kom nchuav, thiab tsawg qhov chaw rau "tsis paub tsis meej" mus nkaum.

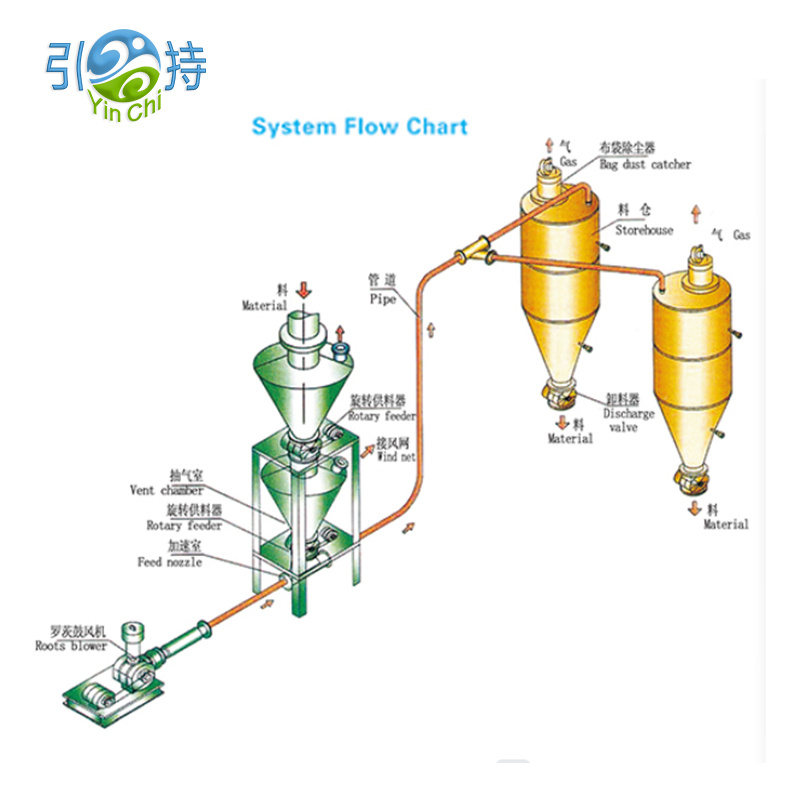

Yuav ua li cas Pneumatic Conveying System ua haujlwm

Nyob rau theem siab, aPneumatic conveying systemthauj cov khoom khib nyiab los ntawm cov yeeb nkab siv qhov sib txawv ntawm qhov sib txawv thiab cov cua ntws. Cov khoom nkag mus rau hauv txoj kab xa khoom ntawm qhov chaw nqa khoom, mus rau lub nkoj tau txais, thiab huab cua sib cais los ntawm cov khib nyiab los ntawm kev pom.

Dab tsi tshwm sim hauv lub cev

• Airflow muab lub zog tsav
• Cov khoom yog entrained los yog thawb nrog nyob ntawm seb hom conveying
• Kev nrawm yuav tsum siab txaus los tiv thaiv kev daws teeb meem tab sis tsis yog siab heev uas nws rhuav tshem cov khoom lossis cov khoom pov tseg
• Khoov, ua haujlwm ntev, thiab kev hloov siab ntxiv ntxiv kev tiv thaiv thiab cuam tshuam rau kev ruaj ntseg

Yam koj yuav tsum tau thov los ntawm ib qho kev tsim

• ruaj khov conveying yam tsis muaj surging, ntsaws, lossis "burping" ntawm lub receiver
• Kev kwv yees pub tus nqi thoob plaws qhov hloov pauv, caij nyoog, thiab cov khoom hloov pauv ntau
• Kev ua haujlwm plua plav nruj nrog kev pom qhov loj me rau cov khoom siv tiag tiag
• Kev saib xyuas tsim nyog nkag mus rau hnav cov ntsiab lus thiab cov ntxaij lim dej

Vacuum Conveying vs Pressure Conveying

Ib qho ntawm thawj qhov kev xaiv yog seb koj txoj kab xa khoom yuav tsum rub cov khoom (nqus) lossis cov khoom thawb (siab). Ob leeg tuaj yeem ua haujlwm tau zoo, tab sis lawv daws cov teeb meem sib txawv.

Ib txoj cai ntawm tus ntiv tes xoo yog pib nrog koj qhov layout. Yog tias koj xav tau sau los ntawm ntau lub ntsiab lus thiab xa mus rau ib qho chaw, lub tshuab nqus tsev feem ntau ua rau lub network yooj yim dua. Yog tias koj xav tau xa cov khoom mus rau qhov chaw nyob deb lossis ntau lub bins, kev xa khoom siab yuav zoo dua.

Dilute Phase vs Dense Phase

Qhov no yog qhov uas ntau qhov haujlwm ua tiav lossis tsis tiav. Tib yamPneumatic conveying systemtuaj yeem coj tus cwj pwm zoo nkauj nrog ib qho khoom siv thiab txaus ntshai nrog lwm tus yog tias qhov kev xaiv theem tsis raug.

Dilute theem

• Cov khoom yog nqa nyob rau hauv ib tug kuj high-ceev huab cua kwj
• Feem ntau yooj yim rau kev tswj thiab tuaj yeem tswj tau ntau yam ntawm cov hmoov thiab pellets
• Risk: siab dua tuaj yeem ua rau hnav, suab nrov, thiab khoom attrition

Ntsig theem

• Cov khoom txav ntawm qis tshaj tawm hauv ntau "slug" lossis "plug".
• Feem ntau nyiam rau cov khoom tawg yooj yim, cov hmoov abrasive, los yog thaum txo cov teeb meem degradation
• Kev pheej hmoo: tej zaum yuav xav tau kev noj zaub mov ntau dua, tswj kev siab, thiab kho cov khoom siv tshwj xeeb

If your plant has issues like pellet breakage, too many fines, or visible erosion at bends, dense phase (or a lower-velocity strategy) becomes a serious candidate. Yog tias koj qhov teeb meem saum toj kawg nkaus yog kev thauj mus los yooj yim nrog kev tswj ncaj nraim, dilute theem yuav yog txoj hauv kev ceev tshaj plaws rau kev ruaj ntseg.

Cov ntsiab lus tseem ceeb uas txiav txim siab kev ntseeg siab

Quotes tuaj yeem zoo sib xws ntawm daim ntawv, tab sis cov kev xaiv hauv cheeb tsam qhia seb tus neeg muag khoom puas nkag siab koj cov khoom. Nov yog qee qhov feem ntau txiav txim siab ua haujlwm txhua hnub.

• Khoom noj khoom hausxws li rotary airlock valve, venturi, los yog lub nkoj siab pub, xaiv rau kev tswj kom to thiab ruaj khov npaum li cas
• Cua qhov chawxws li blower, kiv cua, lossis compressor, qhov loj me rau qhov xav tau siab thiab ntws nrog cov npoo rau lim loading
• Kev xa tawm kabnrog rau txoj kab uas hla ntawm cov yeeb nkab, khoov, thiab hnav seem, tsim los txwv kev poob siab thiab tiv thaiv kev daws teeb meem
• Txais thiab filtrationnrog rau qhov chaw lim dej, txoj kev tu, thiab cov plua plav tawm, tsim rau kev ua haujlwm tas mus li yam tsis muaj chob
• Tswj thiab ntsuassuav nrog cov sensors siab, qhov sib txawv ntawm cov lim dej, thiab kev sib cuam tshuam uas tiv thaiv kev khiav tawm ntawm kev sib tsoo

Rau ntau lub chaw tsim khoom, lub airlock valve yog qhov teeb meem ntsiag to. Kev xau ntau dhau txhais tau hais tias kev xa khoom tsis ruaj khov, kev sib cais ntawm tus neeg txais tsis zoo, thiab cov plua plav npaj txhij txog. Kev nruj dhau los yog qhov tsis zoo sib xws tuaj yeem tsim kom sov, khi, thiab nres tsis tu ncua. Txuas lub airlock rau koj qhov loj me, qhov kub thiab txias, abrasiveness, thiab qib sealing yuav tsum tau.

Tsim daim ntawv txheeb xyuas ua ntej koj yuav

Siv daim ntawv txheeb xyuas no los sib piv cov lus pom zoo thiab txo qis kev xav tsis thoob tom qab kev teeb tsa. Lub hom phiaj tsis zoo tag nrho, nws yog kev tswj hwm kev pheej hmoo.

• Khoom siv profilesuav nrog ntau qhov ntom ntom, particle loj ntau, noo noo rhiab heev, nplaum, abrasiveness, thiab kub
• Lub hom phiaj muaj peev xwmsuav nrog tus nqi nruab nrab, tus nqi siab tshaj, thiab qhov nce siab npaum li cas
• Kev ncua deb thiab routingsuav nrog tag nrho qhov sib npaug ntev, tus naj npawb ntawm khoov, ntsug nqa, thiab muaj cov ntsiab lus txhawb nqa
• Pickup thiab tso tawm cov ntsiab lussuav nrog pes tsawg qhov chaw thiab qhov chaw koj xav tau tam sim no thiab hauv ob xyoos
• Kev huv huvsuav nrog ntau npaum li cas plua plav tau txais nyob ib puag ncig tus neeg txais thiab saib xyuas tsev zoo li cas niaj hnub no
• Lub zog thiab cov khoom sivsuav nrog muaj hluav taws xob muaj peev xwm thiab seb huab cua compressed puas ruaj khov thiab qhuav
• Kev hnav khaub ncawssuav nrog khoov style, hloov pauv hnav, thiab nkag mus rau kev tshuaj xyuas
• Kev saib xyuas kev nkagsuav nrog lim hloov chaw, airlock kev pabcuam tshem tawm, thiab cov ntsiab lus cais kom nyab xeeb
• Kev npaj ua haujlwmsuav nrog kev xeem khiav nrog koj cov khoom siv tiag tiag, tsis yog nrog "cov qauv" nkaus xwb

Yog tias lub tswv yim zam cov ntsiab lus no lossis teb lawv tsis meej, qhov ntawd tsis yog qhov "zoo-rau-muaj" qhov sib txawv. Qhov ntawd yog qhov uas koj lub sijhawm poob yuav los tom qab.

Lub zog thiab cov nqi khiav lag luam

Tus nqi khiav lag luam tsis yog hais txog lub cev muaj zog xwb. Nws yog hais txog seb lub kaw lus puas tuaj yeem txav cov khoom ntawm qhov qis tshaj qhov nrawm thiab siab rau koj cov xwm txheej tshwj xeeb.

• Txoj kab uas hla kev xaivcuam ​​tshuam rau kev tshaj tawm thiab kev poob siab heev
• Txoj kev qhuab qhiaxws li tsawg dua ntse khoov txo turbulence thiab hnav
• Airflow tswjpab kom tsis txhob muaj cov khoom siv ntau dhau los kom "muaj kev nyab xeeb"
• Lim qhov loj metiv thaiv kev sib txawv siab uas yuam kom cov huab cua ua haujlwm hnyav dua
• Leak tswjntawm airlocks thiab kev sib txuas txo cov cua nkim thiab tsis ruaj khov

Ib qho kev zais nyiaj ntau yog khiav ntawm huab cua ntau dhau vim tias lub kaw lus tsis zoo. Nrog kev saib xyuas zoo dua thiab lim dej, cov neeg ua haujlwm tuaj yeem ntseeg cov txheej txheem, tsis yog lawv txoj kev xav, thiab koj tuaj yeem khaws cov kab hauv qhov ruaj khov, ua haujlwm tau zoo.

Dust Control thiab kev saib xyuas kev nyab xeeb

Plua plav tsis yog ib qho teeb meem ntawm kev huv xwb. Cov khoom zoo tuaj yeem ua tau yooj yim hauv huab cua, tsiv mus rau hauv cov kabmob thiab cov khoom siv hluav taws xob, thiab tsim kom muaj kev ua haujlwm tsis zoo. Cov xaim xaim xaim yuav txo qis cov ntsiab lus qhib qhib, tab sis kev tswj plua plav tseem nyob ntawm qhov tau txais ntse thiab pom.

Cov kev ntsuas uas ua rau pom qhov sib txawv

• Siv lub receiver nrog lub lim dej txaus kom pom nyob ruaj khov thaum lub sijhawm ua haujlwm ntev
• Xaiv ib txoj kev lim dej uas phim koj lub voj voog ua haujlwm thiab plua plav tus cwj pwm
• Npaj plua plav pov tseg kom nplua nyiaj tsis rov nkag mus rau hauv qhov chaw ua haujlwm thaum lub sijhawm tshem tawm
• Foob kev sib txuas thiab tuav cov gaskets kom lub kaw lus kaw tiag tiag
• Khaws cov chaw kuaj xyuas kom nkag mus tau kom "cov teeb meem me" tsis dhau los ua cov ntsaws ruaj ruaj

Yog hais tias koj cov khoom yog combustible los yog zoo heev, tham txog cov nroj tsuag tshwj xeeb kev nyab xeeb yuav tsum tau thaum ntxov ntawm lub project. Kev tsim vaj tsev zoo yog qhov muaj txiaj ntsig: nws xav tias muaj kev hloov pauv hauv ntiaj teb tiag tiag thiab tsim hauv cov txheej txheem tiv thaiv es tsis yog tso siab rau tus neeg ua haujlwm zoo tshaj plaws.

Txoj Haujlwm Pabcuam thiab Kev Pabcuam

A Pneumatic conveying systemyuav tsum tsis txhob yuav heroics. Txoj hauv kev yooj yim tshaj plaws kom ua tiav qhov ntawd yog kho commissioning ua ib feem ntawm kev tsim, tsis yog kev xav tom qab.

• Lub hauv paus xeemnrog koj cov khoom siv tiag tiag ntawm qhov xav tau qhov kub thiab txias
• Kev txheeb xyuas ceevkom paub meej tias koj nyob saum cov kev txwv tsis pub dhau-accelerating
• Lim loading soj ntsuamkom paub meej tias lub voj voog tu kom sib txawv siab ruaj khov
• Hnav cov phiaj xwm tshuaj xyuasrau khoov thiab cov cheeb tsam muaj kev cuam tshuam loj ntawm cov sijhawm khiav haujlwm
• Spare yam tswv yimtsom rau airlock seals, lim cov ntsiab lus, thiab hnav seem

Feem ntau "cov teeb meem tsis meej" tshwm sim raws li cov qauv hauv siab, lim qhov sib txawv, thiab lub cev muaj zog. Cov cuab yeej siv tsis tas yuav zoo nkauj, nws yuav tsum tau muab tso rau ntse thiab siv tiag tiag.

Cov Kev Siv Ntiaj Teb tiag

Ntawm no yog cov xwm txheej uas cov nroj tsuag xaiv pneumatic conveying thiab lawv feem ntau optimize rau.

• Hmoov hloov mus rau mixersmuab qhov tseem ceeb ntawm cov plua plav-nruj nqa thiab noj zoo ib yam los tiv thaiv batch zoo
• Pellet conveying rau silosprioritizes maj mam tuav thiab hnav-resistant khoov kom txo tau nplua
• Hnab pov tseg chaw nres tshebsaib xyuas qhov tseem ceeb ntawm kev tshem tawm cov plua plav hauv zos thiab ntxuav tau los tiv thaiv cov neeg ua haujlwm
• Muaj ntau qhov kev xaiv rau hauv ib txoj kabprioritizes ruaj khov hloov logic thiab sib npaug suction

Txoj xov zoo yog tswj kev sib txawv. Cov ntaub ntawv hloov pauv. Ambient humidity hloov. Cov neeg ua haujlwm hloov. Lub kaw lus yuav tsum tseem xa cov dej ntws ruaj khov yam tsis xav tau kev cuam tshuam los ntawm phau ntawv.

FAQ

Q1. Cov ntaub ntawv dab tsi kuv yuav tsum tau npaj ua ntej thov qhov kev thov

Provide your material name, bulk density range, particle size range, moisture sensitivity, temperature, desired capacity, distances, number of bends, and pickup and discharge points. Yog tias koj muaj cov duab ntawm cov ntsiab lus hloov pauv tam sim no thiab qhov xwm txheej ntawm cov plua plav nyob ib puag ncig, uas yuav pab cov engineers tsim rau qhov tseeb es tsis yog qhov kev xav.

Q2. Yuav lub pneumatic system puas puas pellets los yog granules

Nws tuaj yeem yog qhov nrawm dhau los yog khoov tsis zoo. Tias yog vim li cas qhov kev xaiv theem, routing, thiab khoov tsim teeb meem. Thaum cov khoom lag luam ncaj ncees yog qhov tseem ceeb, cov tswv yim qis tshaj tawm thiab kev tswj kev coj ua tuaj yeem txo qis qis.

Q3. Vim li cas qee lub tshuab ntsaws txawm tias lub cev muaj zog

Plugging feem ntau yog tshwm sim los ntawm kev pub noj tsis ruaj khov, ntau qhov khoov ntse, tsis raug cua-rau-khoom sib piv, ya raws-driven adhesion, los yog lim txwv uas hloov airflow thaum ua haujlwm. Ntau lub zog tsis tuaj yeem tsim kev ruaj khov.

Q4. Kuv yuav txo cov plua plav nyob ib ncig ntawm lub receiver li cas

Tsom ntsoov rau thaj chaw txais kev pom, kev lim dej kom zoo, kev sib txuas kaw, thiab kev tswj xyuas kev tawm mus rau kev raug nplua. Cov teeb meem plua plav feem ntau yog los ntawm kev pom tsis zoo lossis tsis zoo sealing tsis yog los ntawm "pneumatic conveying" nws tus kheej.

Q5. Ib qho system tuaj yeem siv ntau yam ntaub ntawv

Qee zaum, tab sis nws nyob ntawm seb cov khoom siv sib txawv li cas hauv qhov ntom ntom, qhov loj me, thiab tus cwj pwm ntws. Yog tias koj yuav tsum tuav ntau yam ntaub ntawv, nug txog tus qauv tsim uas txhais cov qhov rais ua haujlwm ruaj khov thiab suav nrog kev hloov pauv thiab kev tu cov kauj ruam.

Kev xaus thiab cov kauj ruam tom ntej

A Pneumatic conveying systemtsis yog ib qho kev yuav khoom loj, nws yog txoj kev txiav txim siab. Thaum cov theem, huab cua qhov chaw, txoj kev pub mis, routing, thiab filtration yog matched rau koj cov khoom thiab layout, koj yuav tau huv si pem teb, muaj kev cuam tshuam tsawg dua, thiab ntau yam kev kwv yees ntau lawm. Thaum lawv tsis yog, koj tau txais plua plav, ntsaws, thiab qhov system txhua tus zam.

Yog tias koj xav tau tus qauv tsim uas haum rau koj cov nroj tsuag thiab cov khoom siv coj tus cwj pwm,Shandong Yinchi Environmental Protection Equipment Co., Ltd.tuaj yeem pab koj txhais cov lus qhia meej, sib piv cov qauv kev thauj mus los, thiab tsim kom muaj lub tswv yim zoo rau kev teeb tsa thiab kev ua haujlwm. Npaj los txo cov plua plav thiab ruaj khov hloov cov ntsiab lus? tiv tauj peblos tham txog koj daim ntawv thov thiab tau txais ib qho kev daws teeb meem.
