Phau Ntawv Qhia Txog Kev Tsim Kho Kom Zoo rau Direct Coupling Roots Blowers

1. Direct Coupling Roots Blowers: Core Concept

2. Mechanics ntawm Direct-Coupled Rotary Positive Displacement

3. Performance Advantages Over Belt-Driven Systems

4. Installation & Alignment: Precision rau lub neej ntev

5. Maintenance Protocols rau Direct Drive Units

6. Cov ntawv thov kev lag luam tseem ceeb

7. Cov Ntsiab Lus Qhia Tshwj Xeeb & Kev Xaiv Qhia

8. Cov lus nug nquag nug (FAQ)

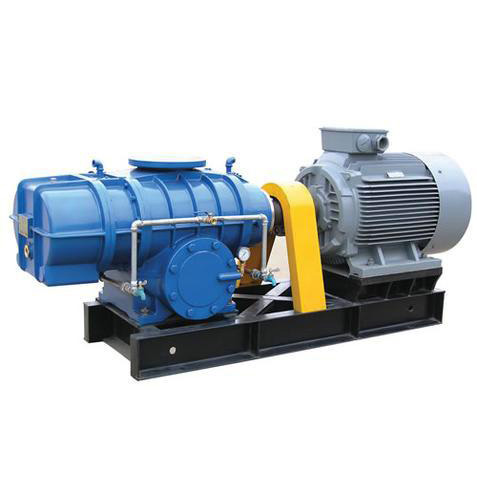

1. Direct Coupling Roots Blowers: Core Concept

Nyob rau hauv lub plawv ntawm suav tsis txheeb cov txheej txheem, los ntawm kev kho dej khib nyiab mus rau pneumatic conveying, lus dag lub zog technology ntawmDirect Coupling Roots Blowers. Tsis zoo li kev siv txoj siv sia siv, cov chav no muaj qhov sib txuas ncaj qha ntawm lub cev muaj zog thiab lub tshuab nqus tsev ntawm kev sib txuas. Qhov kev sib txawv yooj yim zoo li no ua rau muaj txiaj ntsig zoo hauv kev ua haujlwm, durability, thiab kev ua haujlwm ruaj khov. Los ntawm kev tshem tawm txoj siv sia, lub kaw lus tshem tawm ib qho kev hnav thiab lub zog poob, ua Direct Coupling Roots Blowers yog qhov kev xaiv zoo tshaj plaws rau cov ntawv thov txuas ntxiv uas qhov kev ntseeg siab yog qhov tseem ceeb.

Qhov kev teeb tsa ncaj qha no ua kom ntseeg tau tias qhov kev sib hloov ceev ntawm lub cev muaj zog tau raug xa mus rau lub impellers, xa cov huab cua ruaj khov, tsis muaj pa tawm uas yog qhov tseem ceeb rau cov txheej txheem xws li aeration hauv kev kho mob lom lossis cov khoom thauj hauv cov nroj tsuag cement. Lub tswv yim tsim tsim nyob rau ntawm qhov tsawg kawg nkaus kev poob thiab lub sijhawm ua haujlwm siab tshaj plaws, uas yog vim li cas kev lag luam uas xav tau cov haujlwm ua haujlwm tau nce ntxiv siv txoj kev tsav tsheb no dhau los siv cov kab ke ib txwm muaj.

2. Mechanics ntawm Direct-Coupled Rotary Positive Displacement

Direct Coupling Roots Blowersua haujlwm ntawm txoj cai hloov pauv zoo, siv ob lossis peb-lobe rotors uas tig mus rau cov lus qhia tsis sib xws nyob rau hauv ib lub tshuab ua haujlwm zoo. Kev sib txuas ncaj qha ua kom cov rotors muaj kev sib koom ua ke, uas tau tsav los ntawm lub sijhawm lub zog uas tiv thaiv kev sib cuag hlau-rau-hlau. Raws li cov lobes tig, lawv ntxiab ib lub ntim ntawm cov huab cua ntawm qhov chaw nres nkoj thiab thauj nws mus rau sab tawm, qhov uas nws raug ntiab tawm ntawm qhov system siab.

Lub ntsiab kom zoo dua mechanical yog nyob rau hauv lub coupling nws tus kheej. Ib qho yooj yim coupling, feem ntau ntawm taper-lock style, txuas lub cev muaj zog ncej mus rau lub tshuab raj, ua kom haum me me misalignments thaum kis torque zoo. Qhov kev tsav ncaj qha no tshem tawm cov kev swb uas muaj nyob rau hauv txoj siv sia, kom ntseeg tau tias lub tshuab ua haujlwm ua haujlwm tau zoo ntawm nws qhov kev tsim nrawm, uas ncaj qha cuam tshuam rau qhov ntsuas qhov ntsuas qhov ntsuas. Cov yam ntxwv no yog qhov tseem ceeb rau cov txheej txheem uas yuav tsum tau ua kom zoo ib yam, ntsuas huab cua, xws li hauv cov tshuaj siv tshuaj lossis cov tshuaj tua kab mob fluidized.

3. Kev Ua Tau Zoo Tshaj Plaws Tshaj Plaws-Driven Systems

Thaum ntsuam xyuas Direct Coupling Roots Blowers tawm tsam cov khoom siv sib txuas, ntau qhov kev ua tau zoo sib txawv tshwm sim. Ua ntej, qhov sib txuas ncaj qha tshem tawm txoj siv tensioning thiab hnav, uas tsis yog tsuas yog txo kev txij nkawm, tab sis kuj tseem tiv thaiv kev ua haujlwm tsis tu ncua raws li txoj siv sia ntev. Qhov thib ob, qhov tsis muaj txoj siv sia thiab rub lub rooj sib dhos txo cov hneev taw tag nrho thiab qhov hnyav ntawm chav tsev, ua kom yooj yim rau kev teeb tsa thiab kev koom ua ke rau hauv cov qauv cog cog.

Tsis tas li ntawd, cov tshuab hluav taws xob ncaj qha ua rau muaj kev vibration qis dua thiab ua haujlwm ntsiag to, ua rau muaj kev nyab xeeb thiab xis nyob hauv chaw ua haujlwm. Kev txo cov neeg kho tshuab tsis yooj yim txhais tau tias tsawg dua cov khoom yuav raug ua tsis tiav, txhim kho tag nrho cov kev ntseeg siab ntawm qhov system. Nyob rau hauv daim ntawv thov qhov chaw yog constrained los yog nyob rau hauv tas li ntawd mus, high-loading lag luam yog yuav tsum tau, ncaj qha coupling muab ib tug txiav txim kom zoo dua nyob rau hauv cov nqe lus ntawm kev ua tau zoo stability thiab lifecycle nqi kev txiav txim siab.

4. Installation & Alignment: Precision rau lub neej ntev

Kev ua tiav ntawm kev xa tawmDirect Coupling Roots Blowershinges ntawm meticulous installation, tshwj xeeb tshaj yog ncej alignment. Txawm tias me me misalignment tuaj yeem ua rau muaj kev vibration ntau dhau, kev coj tus cwj pwm ntxov ntxov, thiab ua rau qaug zog. Kev lag luam kev coj ua zoo tshaj plaws hais tias cov kev sib txuas yuav tsum tau nruab nrog kev cuam tshuam zoo, feem ntau yuav tsum tau tswj cov cua sov, kom ntseeg tau tias muaj kev ruaj ntseg rau cov ncej.

Kev sib raug zoo nrog kev txheeb xyuas ob qho tib si offset thiab angular deviations. Rau kev ua haujlwm zoo, tag nrho qhov ntsuas ntsuas (TIR) ​​ntawm qhov txuas txuas yuav tsum tsis pub tshaj 0.005 ntiv tes (0.13 hli), thiab qhov sib txawv ntawm lub ntsej muag sib txuas yuav tsum tsis pub dhau 0.001 ntiv tes (0.03 hli). Tsis tas li ntawd, nws yog ib qho tseem ceeb los tsim kom tau qhov tseeb axial qhov sib txawv ntawm kev sib txuas ib nrab kom haum rau thermal expansion ntawm lub shafts thaum lub sij hawm ua hauj lwm, tiv thaiv thrust loading uas yuav ua rau lub blower lub sab hauv. Siv lub taper-lock style coupling yog pom zoo los xyuas kom meej qhov zoo torque kis tau tus mob thiab yooj yim ntawm kev tshem tawm.

5. Txoj Cai Tswj Xyuas Kev Ncaj Ncees rau Cov Tsav Tsheb

Thaum Direct Coupling Roots Blowers yuav tsum tau muaj kev cuam tshuam tsawg dua li cov khoom siv siv, cov txheej txheem kev saib xyuas yog qhov tseem ceeb. Lub hom phiaj tseem ceeb muaj xws li lubrication ntawm lub gearbox thiab bearings, coupling tshuaj xyuas, thiab xyuas kom meej ntawm kev sib tw. Kev hloov roj tsis tu ncua siv cov chaw tsim khoom-pom zoo lubricant tiv thaiv iav hnav thiab ua kom muaj kev ua haujlwm zoo.

Kev kuaj xyuas lub sijhawm sib txuas yuav tsum koom nrog kev tshuaj xyuas qhov muag rau kev hnav lossis tawg, thiab rov torquing ntawm fasteners rau cov nqi teev. Kev saib xyuas kev vibration tuaj yeem ua qhov cuab yeej saib xyuas kev ua haujlwm, tshawb pom cov cim qhia ntxov ntawm kev tsis sib haum xeeb lossis tsis zoo. Tsis tas li ntawd, xyuas kom cov cua lim kom huv si thiab tsis muaj kev cuam tshuam yuav tiv thaiv cov rotors los ntawm kev puas tsuaj, tswj cov huab cua huv, tsis muaj roj tawm uas yog qhov cim ntawm cov tshuab tshuab no.

• Txhua hnub:Tshawb xyuas cov roj theem, mloog cov suab nrov txawv txav, saib xyuas cov pa tawm siab & kub.
• Txhua hli:Tshawb xyuas coupling rau hnav, xyuas kom zoo, huv si lim.
• Peb lub hlis twg:Hloov cov roj iav, tshuaj xyuas cov bearings, xyuas tag nrho cov fasteners torque.
• Txhua xyoo:Kev kho dua tshiab, suav nrog kev ntsuas rotor tshem tawm thiab hloov foob.

6. Cov ntawv thov kev lag luam tseem ceeb

Cov qauv tsim muaj zog thiab txhim khu kev qha ua tau zoo ntawm Direct Coupling Roots Blowers ua rau lawv tsis tuaj yeem nyob thoob plaws ntau qhov chaw. Hauv kev kho cov dej khib nyiab, lawv muab qhov tseem ceeb aeration rau aerobic digestion, kom ntseeg tau tias kev puas tsuaj ntawm cov organic. Hauv kev lag luam aquaculture, lawv tswj hwm qhov tseem ceeb ntawm cov pa oxygen hauv cov pas dej thiab cov tso tsheb hlau luam, cuam tshuam ncaj qha rau cov khoom noj khoom haus thiab cov txiaj ntsig.

Rau kev tuav cov khoom siv ntau, cov tshuab tshuab no yog siv hauv pneumatic conveying tshuab los thauj cov cement, nplej, yas, thiab lwm yam hmoov los ntawm cov kav dej. Qhov ruaj khov, siab-siab airflow ua kom zoo ib yam thiab muaj txiaj ntsig cov ntaub ntawv hloov mus ntev. Lwm cov ntawv thov tseem ceeb suav nrog kev sib xyaw huab cua hauv qhov cub, roj boosting hauv cov nroj tsuag petrochemical, thiab lub tshuab nqus tsev ntim, ua kom pom qhov ua tau zoo ntawm cov thev naus laus zis no thoob plaws hauv kev lag luam spectrum.

Cov haujlwm tseem ceeb:Dej pov tseg Aeration · Aquaculture · Pneumatic Conveying · Cement Industry · Fais fab nroj tsuag · Tshuaj ua · Biogas tuav

7. Cov Lus Qhia Tshwj Xeeb & Kev Xaiv Cov Lus Qhia

Xaiv txoj caiDirect Coupling Roots Blowersrau ib daim ntawv thov yuav tsum tau ua tib zoo tsom xam ntawm tus nqi ntws, siab, thiab lub zog xav tau. Cov chav nyob ib txwm muaj cov nqi ntws los ntawm qis li 0.6 m³ / min mus rau ntau dua 120 m³ / min, nrog kev tso tawm siab txog 98 kPa. Lub cev muaj zog tuaj yeem ncav cuag 1.1 kW rau cov chav me me mus rau ntau dua 185 kW rau cov qauv kev lag luam loj.

Thaum qhia txog lub tshuab hluav taws xob, xav txog qhov xav tau qhov sib txawv ntawm qhov xav tau, qhov xav tau ntws ntawm lub siab ntawd, thiab qhov chaw ua haujlwm ambient. Peb-lobe rotor tsim tau dhau los ua tus qauv kev lag luam rau nws cov yam ntxwv zoo dua qub thiab kev ua haujlwm zoo piv rau cov qauv qub ob-lobe. Kev sab laj kev ua tau zoo curves thiab cov ntaub ntawv kev tshaj lij yog qhov tseem ceeb los xyuas kom meej tias lub tshuab hluav taws xob xaiv tau ua haujlwm ntawm nws qhov kev pom zoo, xa cov kev pabcuam txhim khu kev qha rau daim ntawv thov npaj.
