Executive Summary

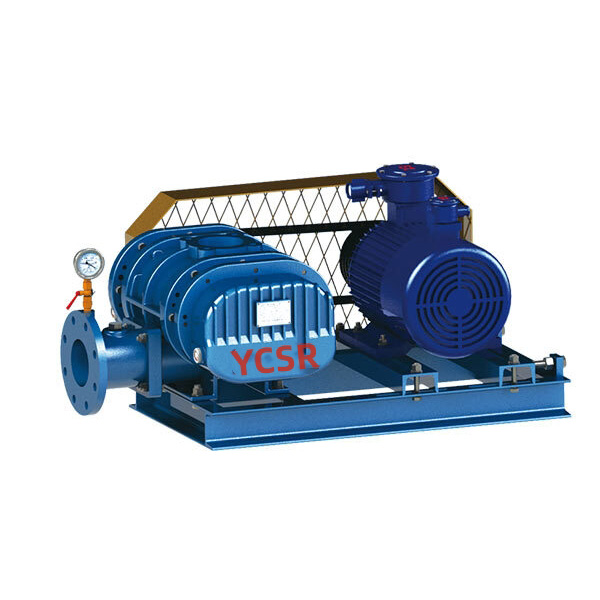

CovRoots Nqus Pumpstands raws li lub hauv paus technology nyob rau hauv niaj hnub kev lag luam ua, muab unparalleled efficiency nyob rau hauv pneumatic conveying thiab nqus ntim tshuab. Tsis zoo li cov twj tso kua roj ib txwm siv, lub tshuab no ua haujlwm ntawm lub hauv paus ntsiab lus qhuav-khiav, siv ob daim duab-yim rotors uas tig hauv synchronization kom txav cov huab cua loj ntawm cov tshuab nqus tsev tsawg. Qhov kev tshuaj xyuas dav dav no tshawb txog engineering tom qab cov tshuab muaj zog, lawv lub luag haujlwm tseem ceeb hauv kev lag luam xws li ntim khoom noj mus rau kev thauj mus los ntawm cement, thiab cov kev qhia tshwj xeeb uas txhais tau tias lawv cov kev ua tau zoo. Raws li qhov tseem ceeb hauv kev tswj hwm qhov chaw tsis zoo, kev nkag siab txog kev ua haujlwm ntawm cov twj tso kua mis no yog qhov tseem ceeb rau cov engineers thiab cov kws tshaj lij kev muag khoom ib yam nkaus.
1.Qhov Engineering Tom Qab Mechanism
Nyob rau hauv lub plawv ntawm industrial aeration thiab evacuation systems lies ib hom ntawm zoo displacement twj tso kua mis. Cov cuab yeej no ua haujlwm ntawm lub hauv paus ntsiab lus sib txawv dua li nws cov centrifugal counterparts. Es tsis txhob siv impellers los nthuav tawm qhov nrawm rau cov kua dej, nws siv ob lossis peb lub lobed rotors uas tig rau hauv qhov tsis sib haum xeeb nyob rau hauv ib lub tsev nyob nruj. Raws li cov rotors tig, lawv tsim cov ntim ntim rau ntawm qhov nkag, kos duab hauv huab cua lossis roj, thiab tom qab ntawd compress thiab tshem tawm ntawm sab tawm. Cov txheej txheem no yog tsis muaj roj, uas txhais tau hais tias lub twj tso kua mis yuav tsum tsis muaj lubrication, ua rau nws zoo tagnrho rau cov ntawv thov uas yuav tsum tau zam nruj me ntsis.
Synchronous tig:Precision iav tuav qhov tseeb qhov chaw ntawm lub rotors, tiv thaiv kev sib cuag ntawm hlau-rau-hlau thiab ua kom lub neej ntev.
Dry Running Peev Xwm:Qhov tsis muaj lubrication sab hauv hauv cov huab cua tiv thaiv cov khoom sib kis, ib qho tseem ceeb rau kev ua zaub mov thiab tshuaj.
High Volume Peev Xwm:Cov chav nyob no yog tsim los txav cov pa loj cubic meters hauv ib feeb, ua rau lawv zoo tshaj rau kev tuav haujlwm ntau.
Kev tsim ntawm cov rotors - txawm tias ob-lobed lossis peb-lobed-tseem ceeb cuam tshuam rau lub suab nrov profile thiab qhov smoothness ntawm airflow. Peb-lobed tsim feem ntau muab kev ua haujlwm ntsiag to thiab tsis tshua muaj suab nrov, uas yog qhov tseem ceeb rau cov chaw nyob ze ntawm thaj chaw nyob lossis thaj chaw muaj suab nrov.
2.Technical Specifications thiab Performance Metrics
Thaum ntsuas cov tshuab no rau kev sib koom ua ke rau hauv cov kab ntau lawm, cov kev ntsuas kev ua tau zoo yuav tsum tau txheeb xyuas. Lub hnab ntawv ua haujlwm ntawm cov tshuab no feem ntau txhais tau los ntawm lawv lub peev xwm los tsim kom muaj qhov tsis zoo siab thiab lawv qhov ntsuas qhov ntsuas volumetric. Piv txwv li, chav nyob hauv qib industrial tuaj yeem ua tiav qib nqus ntawm -100mmHg txog -330mmHg, nrog huab cua sib txawv ntawm 6.24m3/ min mus txog 80m3/ min. Cov duab no tsis zoo li qub; lawv nyob ntawm ntau qhov kev teeb tsa ntawm lub system, txawm tias nws yog txoj siv sia-tsav rau kev tswj ceev ceev los yog ncaj qha-coupled rau siab tshaj plaws efficiency.
| Hom kev teeb tsa |
Kev xaiv qhov chaw fais fab |
Hom Nqus Taub Hau |
Qhov tseem ceeb Advantage |
| Belt-Connected Negative Pressure |
Hluav taws xob lub cev muaj zog / hloov pauv zaus |
-100mmHg ~ -250mmHg |
Adjustable ceev rau cov txheej txheem tswj |
| Direct-Connected Negative Pressure |
Electric Tsav (Tswj Ceev) |
-150mmHg ~ -300mmHg |
Cov tshuab ua haujlwm siab dua, kev saib xyuas tsawg dua |
| Diesel Negative Siab |
Internal Combustion Cav |
-100mmHg ~ -200mmHg |
Mobility thiab kev ua haujlwm nyob rau hauv qhov chaw tsis muaj kab sib chaws |
Nws yog ib qho tseem ceeb kom nkag siab tias "qhov kawg ntawm lub tshuab nqus tsev kawm ntawv" tsis yog tsuas yog kev ua haujlwm ntawm lub twj tso kua mis nws tus kheej tab sis kuj ntawm tag nrho cov txheej txheem kev ncaj ncees. Cov yam xws li cov yeeb nkab txoj kab uas hla, lim huv, thiab kev sib khi ntawm kev sib txuas tag nrho ua rau lub tshuab nqus tsev ua tiav kawg. Yog li ntawd, kev saib xyuas tsis tu ncua thiab kev kuaj xyuas qhov system yog qhov yuav tsum tau ua kom muaj kev ua tau zoo tshaj plaws.
3.Industrial Applications thiab Siv Cases
Lub versatility ntawm cov cuab yeej no tso cai rau nws ua hauj lwm rau ob yam tseem ceeb sectors: consumables processing thiab hnyav siv cov ntaub ntawv tuav. Hauv kev lag luam khoom noj khoom haus, kev tswj hwm ib puag ncig pristine yog tsis sib tham. Ntawm no, cov tshuab tau ua haujlwm kom tshem tawm cov huab cua los ntawm kev ntim khoom, yog li txuas lub neej txee thiab khaws cov tsw qab. Conversely, nyob rau hauv cov cement thiab aggregate kev lag luam, lub hom phiaj hloov mus rau tej kev thauj mus los thiab kev tiv thaiv ib puag ncig.
Cov kab ntim khoom noj khoom haus:Siv los tsim lub tshuab nqus tsev vacuum-sealed ib puag ncig uas inhibit cov kab mob loj hlob thiab khaws cov khoom tshiab thaum lub sij hawm faib khoom.
Cement Truck Unloading:Qhov tseem ceeb rau pneumatic unloading systems, cov twj tso kua mis no tsim kom muaj kev nqus cov hmoov los ntawm cov tankers zoo.
Kev kho dej khib nyiab:Muab cov aeration hauv cov nroj tsuag kho kom yooj yim rau kev rhuav tshem cov organic teeb meem los ntawm cov kab mob aerobic.
Rau kev thauj mus los ntawm cov cement tshwj xeeb, cov cuab yeej siv ua ob lub luag haujlwm. Nws tsis tsuas yog pab txhawb kev hloov pauv sai ntawm cov ntaub ntawv tab sis tseem tswj hwm qhov tsis zoo hauv lub tank thaum lub sijhawm tshem tawm. Qhov no tiv thaiv cov plua plav tawm, ua kom muaj kev ua raws li kev cai ib puag ncig thiab tiv thaiv kev noj qab haus huv ntawm cov neeg ua haujlwm. Lub peev xwm los kho cov chav nyob rau cov qauv tsheb tshwj xeeb thiab cov kev xav tau ntawm lub zog ua rau lawv tsis muaj peev xwm hauv kev thauj mus los.
4.Selection Criteria for Industrial Siv
Xaiv lub chav tsev yog muaj ntau tshaj li qhov sib piv horsepower ratings. Engineers yuav tsum xav txog cov kev xav tau tshwj xeeb ntawm lawv daim ntawv thov, suav nrog tus nqi ntws xav tau, lub hom phiaj nqus tsev, thiab qhov chaw ua haujlwm. Piv txwv li, ib qho chaw uas yuav tsum tau ua haujlwm ntsiag to tuaj yeem ua qhov tseem ceeb rau peb-lobe, qis-suab nrov tsis tu ncua-ceev qauv, thaum daim ntawv thov mobile yuav xav tau lub tshuab hluav taws xob diesel.
Cov ntsiab lus tseem ceeb
Khoom Compatibility:Xyuas kom cov vaj tse thiab cov ntaub ntawv rotor haum rau hom kev tshaj tawm raug tuav (piv txwv li, corrosive gases vs. clean air).
Lub zog muaj peev xwm:Ntsuam xyuas seb lub xaib puas muaj hluav taws xob peb-theem lossis yog tias yuav tsum muaj lub tshuab hluav taws xob diesel rau kev txav mus los.
Maintenance Accessibility:Saib rau cov qauv tsim uas tso cai rau kev nkag tau yooj yim rau cov kabmob thiab cov ntsaws ruaj ruaj kom txo qis qis qis thaum lub sijhawm ua haujlwm.
Tsis tas li ntawd, kev koom tes nrog cov chaw tsim khoom lag luam uas muab cov kev pabcuam OEM thiab ODM tuaj yeem muab qhov txiaj ntsig zoo. Customization tso cai rau kev sib koom ua ke ntawm cov flanges tshwj xeeb, motors, thiab tswj vaj huam sib luag uas haum seamlessly rau hauv cov vaj tse uas twb muaj lawm. Thaum soj ntsuam cov chaw muag khoom, nrhiav cov neeg uas muaj cov ntaub ntawv pov thawj hauv kev lag luam hauv kev lag luam thiab cov neeg ua haujlwm ntawm lawv tus kheej cov chaw tsim khoom kom ntseeg tau tias muaj kev tswj xyuas zoo los ntawm casting mus rau lub rooj sib txoos zaum kawg.
"Kev nqis peev hauv qhov tseeb ntawm cov cuab yeej niaj hnub no tiv thaiv kev tsim khoom kim heev rau tag kis."
5. Cov lus nug nquag
Dab tsi yog qhov txawv ntawm Roots blower thiab lub tshuab nqus tsev ib txwm muaj? +
Qhov tseem ceeb ntawm qhov sib txawv yog nyob rau hauv lub hauv paus ntsiab lus ntawm kev khiav hauj lwm thiab cov txiaj ntsig tau tshwm sim. Lub tshuab nqus tsev ib txwm siv, xws li lub tshuab nqus tsev twj tso kua mis, yog tsim los ua kom tiav cov tshuab nqus tsev siab heev (tsis tshua muaj siab) tab sis nrog tus nqi qis qis. Hauv qhov sib piv, lub hauv paus-hom chav tsev yog ib qho kev hloov pauv zoo uas tsim los rau cov cua ntim siab ntawm cov qib nqus qis. Nws ua tau zoo tshaj plaws hauv kev txav huab cua loj sai sai dua li ua tiav lub tshuab nqus tsev sib sib zog nqus.
Cov khoom siv no puas tuaj yeem siv rau ob qho tib si nqus thiab tawm? +
Yog, tus tsim yog symmetrical thiab bi-directional. Thaum cov lus nug tsom mus rau daim ntawv thov lub tshuab nqus tsev (suction), tib lub cev lub cev feem ntau tuaj yeem siv rau kev siv lub siab zoo (tso tawm) los ntawm kev thim rov qab cov kev taw qhia ntws, muab qhov system piping tau teeb tsa rau nws. Qhov kev ua tau zoo no ua rau nws muaj txiaj ntsig zoo hauv cov chaw xav tau ob qho tib si pneumatic conveying thiab khiav tawm.
Lub tshuab nqus tsev ntsuas ntsuas li cas thiab cuam tshuam dab tsi? +
Lub tshuab nqus tsev kawm ntawv feem ntau ntsuas hauv millimeters mercury (mmHg) lossis millibars (mbar). Lub tshuab nqus tsev qhov kawg ua tiav los ntawm lub kaw lus yog cuam tshuam los ntawm ntau yam: qhov tso tawm sab hauv ntawm lub twj tso kua mis, adsorption ntawm cov pa roj rau ntawm qhov chaw sab hauv, thiab qhov tseem ceeb, kev ncaj ncees ntawm tag nrho lub kaw lus thiab cov kav dej. Txawm tias ib qho me me hauv lub hose lossis kev sib txuas tuaj yeem txo qhov siab tshaj plaws nqus tsev.
6. Cov lus xaus thiab cov kws tshaj lij pom zoo
Hauv cov ntsiab lus, covRoots Nqus Pumptseem yog ib qho cuab yeej tseem ceeb rau kev lag luam uas xav tau cov cua ntim siab nyob rau hauv qhov tsis zoo. Nws txoj kev tsim kho muaj zog, hloov tau mus rau ntau qhov chaw siv hluav taws xob - los ntawm hluav taws xob mus rau diesel - thiab nws lub peev xwm los koom ua ke rau hauv ob qho tib si cov khoom noj khoom haus-qib cov kab ntim khoom thiab cov khoom hnyav hnyav thauj cov cement underscore nws engineering versatility. Thaum xaiv ib chav tsev, nco ntsoov xyuas cov huab cua ntim cov cai tiv thaiv lub twj tso kua mis lub peev xwm thiab xyuas kom lub tshuab nqus tsev kawm tiav raws li cov txheej txheem tshwj xeeb.
Rau cov neeg nrhiav tus khub txhim khu kev qha hauv cov cuab yeej tiv thaiv ib puag ncig thiab kev siv tshuab,Yinchimuaj ntau yam kev daws teeb meem raws li cov qauv thoob ntiaj teb. Nrog rau kev tsom mus rau kev tsim khoom zoo thiab cov neeg siv khoom tshwj xeeb customization, lawv muab cov kev txhawb nqa tsim nyog los txhim kho koj cov txheej txheem kev lag luam.
